BoXo Dive II


  The smart Y-splitter enables a fast and
  efficient implementation of outdoor
  light chains und further IP65 applications.

  Design: Ulf Ziegler

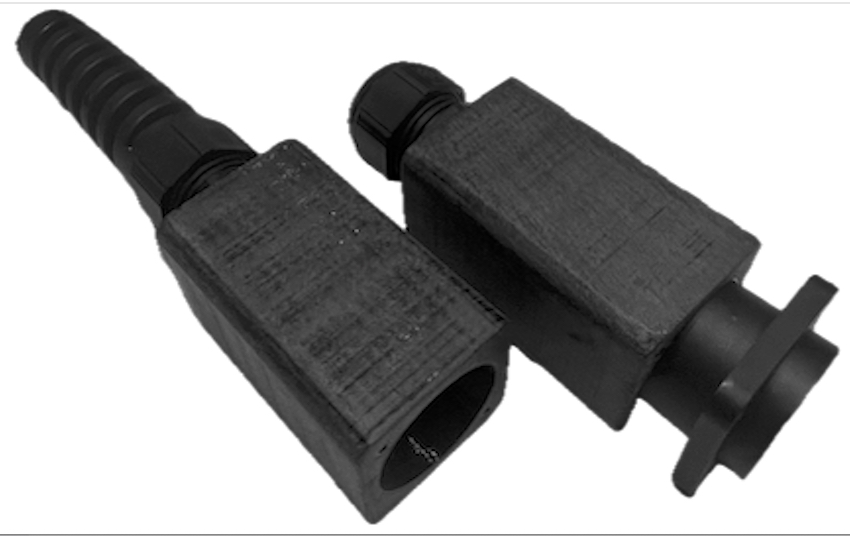

Front and rear view

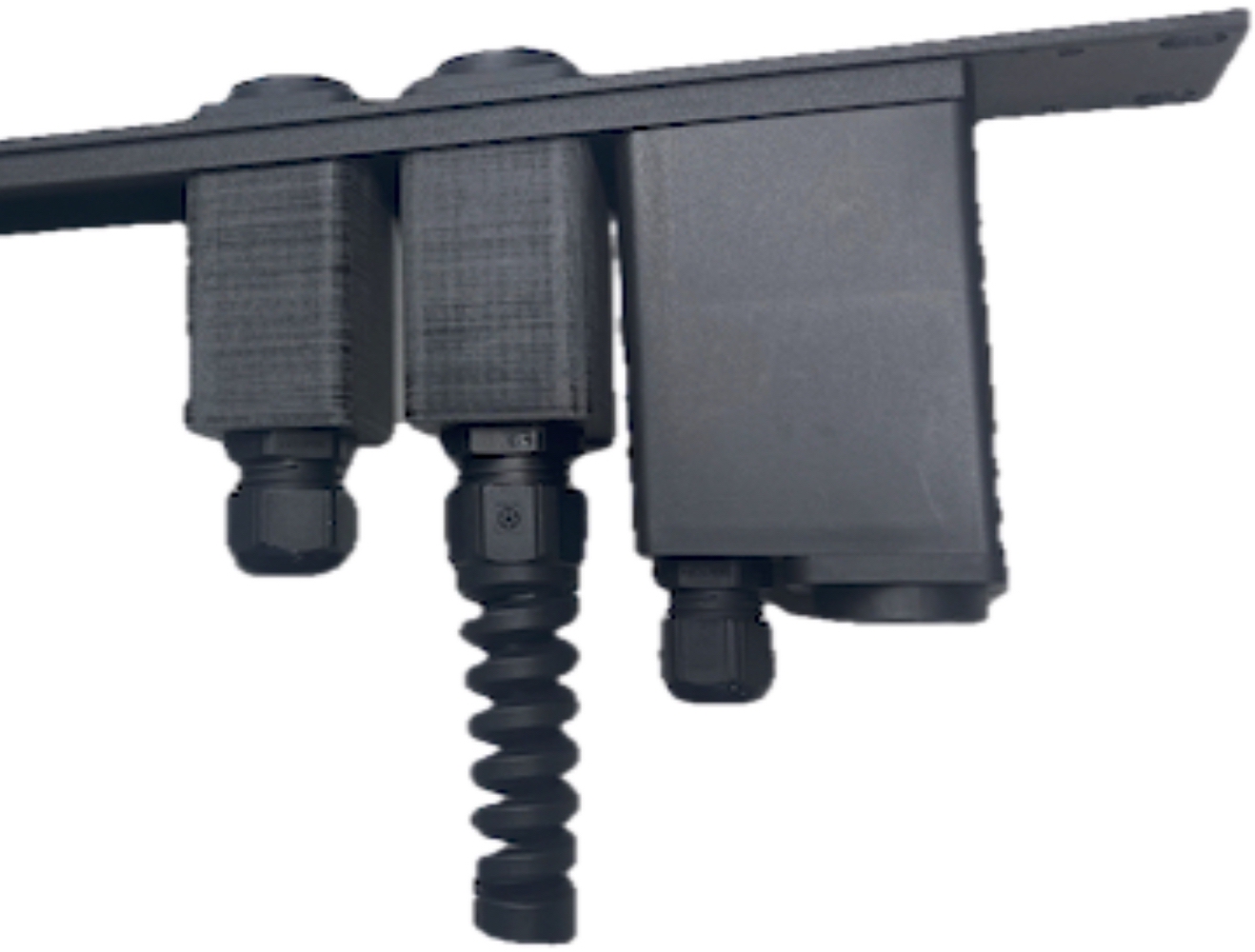

Application Example

  Item No. U3500

  BoXo Dive II

  Neutrik®Powercon True1® connector box
  for self assembly of a NAC3PX connector



  Empty housing with
  Front-cavity for Powercon True1® NAC3PX connector
  Rearside closed for individual processing
  1x rubber seal for NAC3PX
  1x set of screws

  Technical data:

  IP65 compatible
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 75g

  UP: 24,99 Euro incl. VAT.

  UP:21,99 Euro incl. VAT. for 10+ pieces
  UP:19,99 Euro incl. VAT. for 50+ pieces
  UP:17,99 Euro incl. VAT. for 100+ pieces

  Availability: In-Stock



Front and rear view

  Item No. U3512

  BoXo Dive II

  Neutrik®Powercon True1® connector box
  for self assembly of a NAC3PX connector
  on Powercon



  Empty housing with
  Front-cavity for NAC3PX connector
  Rear-cavity for D-Type connector
  1x set of screws

  Technical data:

  Under certain conditions IP65 compatible!
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 75g

  UP: 29,99 Euro incl. VAT.

  Availability: In-Stock




Front and rear view

  Item No. U3520

  BoXo Dive II

  Neutrik®Powercon True1® connector box
  for self assembly of a NAC3PX connector
  on fixed cabling


  Empty housing with
  Front-cavity for NAC3PX connector
  Rear-cavity for M 20 cable gland
  1x cable gland M 20
  1x rubber seal for NAC3PX
  1x set of screws

  Technical data:

  IP65 compatible
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 75g

  UP: 29,99 Euro incl. VAT.

  Availability: In-Stock




Front and rear view

  Item No. U3521

  BoXo Dive II

  Neutrik®Powercon True1® connector box
  for self assembly of a NAC3PX connector
  on fixed cabling


  Empty housing with
  Front-cavity for NAC3PX connector
  Rear-cavity for M 20 cable gland
  1x cable gland M 20 with bending protection
  1x rubber seal for NAC3PX
  1x set of screws

  Technical data:

  IP65 compatible
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 75g

  UP: 29,99 Euro incl. VAT.

  Availability: In-Stock


Front and rear view

  Item No. U3530

  BoXo Dive II

  Neutrik®Powercon True1® connector box
  for self assembly of an Y-Splitter
  of NAC3PX and NAC3FPX connectors



  Empty housing with
  Front-cavity for NAC3PX connector
  Rear-cavity for NAC3FPX connector
  1x rubber seal for NAC3PX
  1x rubber seal for NAC3FPX
  1x set of screws

  Technical data:

  IP65 compatible
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 75g

  UP: 29,99 Euro incl. VAT.

  Availability: In-Stock

  BoXo Dive I





Front and rear view





Application Example

  Item No. U3501

  BoXo Dive

  Y-Splitter Kit for Powercon True1®
  NAC3PX and NAC3FPX connectors


  Empty housing with
  Rubber seals for NAC3PX und NAC3FPX
  set of cables 2,5qmm and screws
  set of screws

  Connectors not included!

  Technical data:

  IP65 compatible
  Material: PA6
  Dimensions: 61x80x35,4mm LxWxH
  Net. weight: approx. 200g

  Further product details

  UP: 29,99 Euro incl. VAT

  Availability: discontinued, only few available

  BoXo Grey


  BoXo Grey enables the creation of an
  operationally reliable electrical plastic
  adapter in a functional look.




   Application Example

  Item No. U4010


  BoXo Grey

  Universal connector box for self assembly
  of D-Type connectors


  Empty housing
  incl. machining of 2 cavities

  Technical data:

  IP65 compatible with Powercon True1®
  Material: ABS dark grey
  Dimensions: 115x65x55mm LxWxH
  Net. weight: ca. 130g

  UP: 24,99 Euro incl. VAT.

  Availability: approx. 5 - 7 days

  BoXo Signal Splitter


  Excellent functionality meets compact
  design with our BoXo Classic as ready
  assembled Signal Splitter.




Front and rear view



  Item No. U3630


  BoXo Speakon® Adapter


  Ready assembled connector
  1x NL4MP on 2x NL4MP
  Original Speakon® Neutrik®

  Technical data:
  Input   1x NL4MP
  Output 2x NL4MP (1+/1-) and (2+/2-)
  Cable-cross-section 2,5mm2
  Crimped
  Cable assign can be freely selected
  Dimensions: 100x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days




Front and rear view



  Item No. U3631


  BoXo Speakon® Adapter


  Ready assembled connector
  1x NL4MP on 2x NL4MP
  Original Speakon® Neutrik®

  Technical data:
  Input   1x NL4MP
  Output 1x NL4MP (1+/1-) und 1x NL4MP (1+/1-)
  Cable-cross-section 2,5mm2
  Crimped
  Cable assign can be freely selected
  Dimensions: 100x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days




Front and rear view



  Item No. U3632


  BoXo Speakon® Adapter


  Ready assembled connector
  1x NL4MP on 3x NL4MP
  Original Speakon® Neutrik®

  Technical data:
  Input   1x NL4MP
  Output 3x NL4MP (1+/1-)
  Cable-cross-section 2,5mm2
  Crimped
  Cable assign can be freely selected
  Dimensions: 150x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days

  BoXo Kombi Adapter




Front and rear view



  Item No. U3633


  Kombi-Adapter for plug jack and Speakon®


  BoXo 1/4" jack on Speakon® Adapter

  Ready assembled connector

  Technical data:
  Input   2x 1/4" jack and/or Speakon®
  Output 2x 1/4"jack and/or Speakon®
  signal flow in both directions possible
  Cable-cross-section 2,5qmm
  Cable assign can be freely selected
  Dimensions: 150x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days




Front and rear view



  Item No. U3634


  Kombi-Adapter for plug jack and Speakon®


  BoXo 1/4" jack on Speakon® Splitter

  Ready assembled connector

  Technical data:
  Input   1x 1/4" jack and/or Speakon®
  Output 3x 1/4" jack / Speakon®
  Cable-cross-section 2,5qmm
  Cable assign 1:1
  Dimensions: 150x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days

  BoXo Loudspeaker Splitter




Front and rear view



  Item No. U3639


  BoXo Loudspeaker Splitter


  Breakoutbox MG on 2x 4pole

  Empty housing with
  2x Speakon® NL4MP connectors
  MG25 or MG32 cable screw connector
  incl. flat blade receptables 4,8

  Shipping content: without plugs
  Dimensions: 100x70x45mm

  UP: 29,99 Euro incl. VAT

  Availability: 3-5 days




Front and rear view



  Item No. U3640


  BoXo Loudspeaker Splitter


  Ready assembled connector
  1x NL8MPR-BAG on 2x NL4MP
  Original Speakon® Neutrik®

  Technical data:
  Input   1x NL8MPR-BAG
  Output 1x NL4MP (1+/1-)(2+/2-) and 1x NL4MP (3+/3-)(4+/4-)
  Cable-cross-section 2,5qmm
  Crimped
  Cable assign can be freely selected
  Shipping content: without plugs
  Dimensions: 100x70x45mm

  UP: 49,99 Euro incl. VAT

  Availability: 3-5 days

  BoXo NF-circuit breaker




Front and rear view



  Item No. U3670


  Adapter for prevention of humming loops


  BoXo NF-circuit breaker

  Ready assembled connector

  Technical data:
  Input   Cinch L + R
  Neutrik NTE1 1:1 ( on request: Lundahl or Haufe )
  Output Cinch L + R
  Dimensions: 100x70x45mm


  UP: 69,99 Euro incl. VAT

  Availability: 3-5 days
